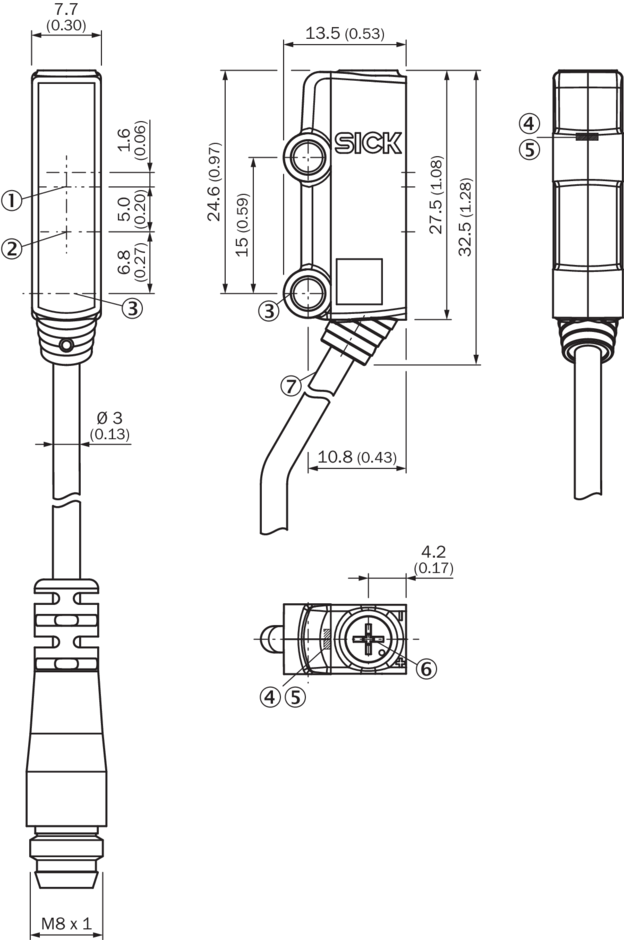

Dimensions in mm (inch)

① optical axis, receiver

② optical axis, sender

③ Mounting hole, Ø 3.2 mm

④ LED indicator green: Supply voltage active

⑤ LED indicator yellow: Status of received light beam

⑥ Potentiometer

⑦ Connection
