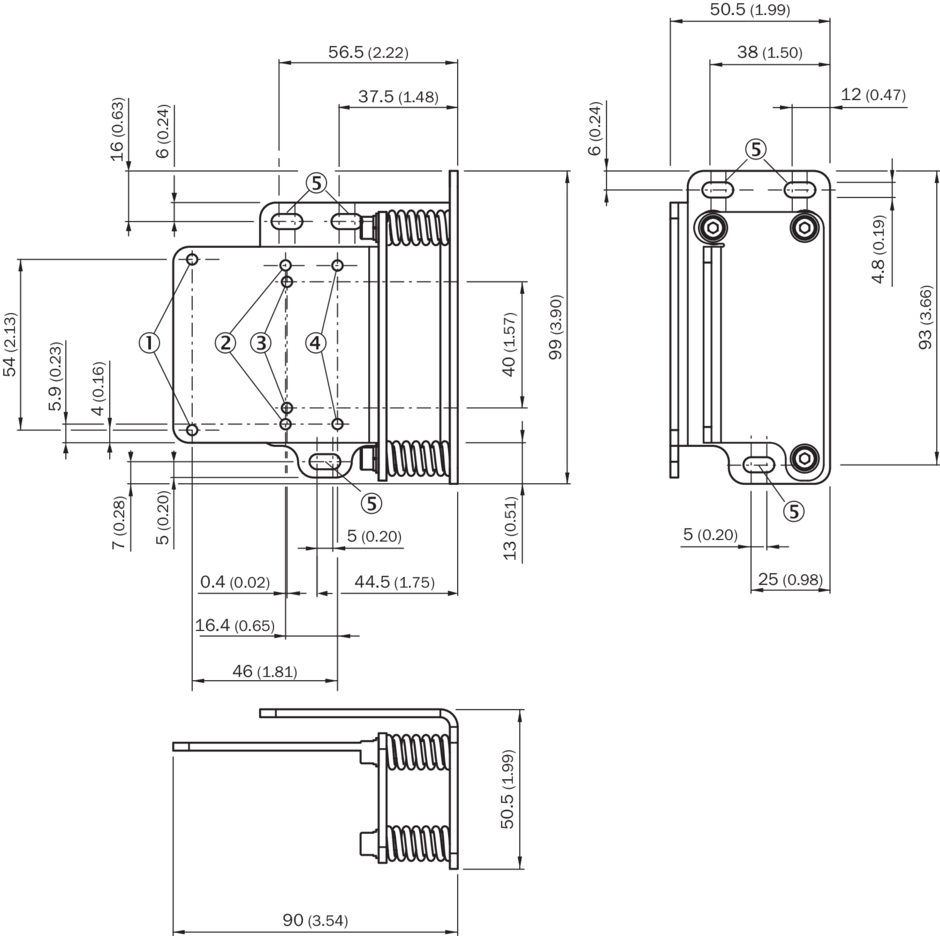

Dimensions in mm (inch)

① Fixing hole for distance sensors Dx35, Dx50, Dx50-2, Dx80

② Mounting hole for distance sensors DT20 Hi

③ Fixing hole for Dx35 distance sensors

④ Fixing hole for distance sensors DT20 Hi, Dx50, Dx50-2, Dx80

⑤ Bracket fixing hole
