Safety light curtains
deTec

Because we take safety to the next level

Your Benefits

  • Increased productivity and short downtimes thanks to extensive and innovative diagnostic options
  • Safety and automation combined: IO-Link makes cost-effective system design possible
  • Muting provides maximum productivity and safety in differentiating between people and material
  • High availability: smart presence detection prevents unwanted switch-offs
  • Easy commissioning and configuration without the need for software, saving time and money
  • IP65, IP67, and IP69K enclosure ratings available, plus variants for explosion-hazardous areas, ensuring maximum reliability in harsh environments

Product selection

Do you need a system or an individual product?

System configuration

Compose up to three individual cascaded system and select additional functions if necessary.

Individual products

Select your desired product from our product range.

Show all Hide all
Show all Hide all
Filter by:

Your desired configuration is being checked...

The configuration result cannot yet be generated. Please complete the missing inputs - the exclamations marks show the missing inputs, or you can contact us.

    Overview

    Because we take safety to the next level

    The new generation of deTec safety light curtains is ideal for the protection of hazardous areas, entrances, and hazardous points. Intelligent and state-of-the-art technologies such as NFC and IO-Link offer completely new possibilities for comprehensive diagnosis, fast installation, and performing automation functions. The standardized connectivity and the compatible accessories for the entire deTec product family reduce variant diversity. The required functions can be activated using the appropriate M12 system plug – without the need for software. With IP65, IP67, and IP69K enclosure ratings available, plus variants for explosion-hazardous areas, solutions can be found for a whole host of different applications in harsh environments.

    At a glance
    • NFC diagnosis and smartphone app
    • Diagnostics and automation via IO-Link
    • 2-signal muting
    • Smart presence detection
    • Dynamic protective field widths
    • Configuration of all functions without software
    • Reduced resolution: 1 or 2 beams
    • IP65, IP67, and IP69K enclosure ratings plus variants for explosion-hazardous areas

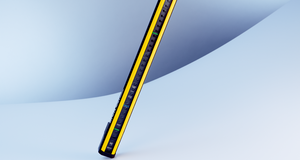

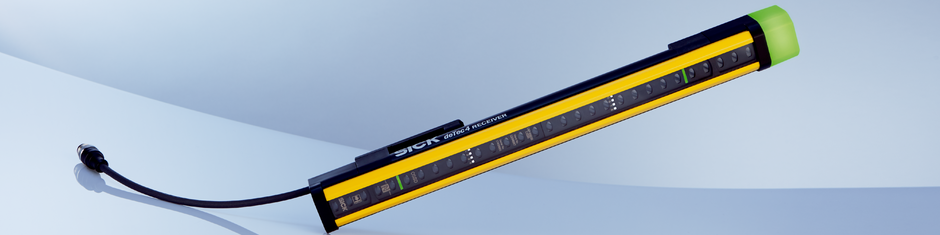

    deTec4 - the new safety light curtain from SICK
    SICK Safety Assistant

    The SICK Safety Assistant App reads configuration and diagnosis data from the safety light curtain deTec4 by using NFC communication.

    Get it on Google Play

    Benefits

    Safe and intelligent

    With the NFC technology, you have entirely new options for on-site diagnosis using a smartphone. IO-Link also makes it possible to read out diagnostic data continuously regardless of your location. The data acquired in this way can then be used for subsequent process steps, for example, taking height measurements and using a safety function at the same time. Easy configuration, completely without software, also saves time and money.

    Unnecessary downtimes and machine failures rapidly impact productivity. deTec4 provides support to machine operators and maintenance personnel in the efficient operation of machines and systems. The extended range of functions provided by the deTec4 is an innovation, ensuring increased availability. With the automation and measurement functions, you already have an eye toward the future. With the innovative SP1 and SP2 system plugs, you can easily activate the desired functions without software.

    Intelligent protection for more productivity

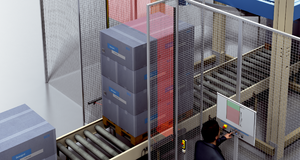

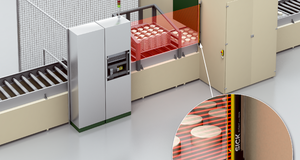

    2-signal muting and IO-Link Safety and automation in one: muting station with height measurement via IO-Link

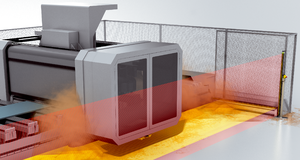

    Dynamic protective field widths High level of flexibility thanks to dynamic protective field widths during operation
    Smart presence detection Safe productivity and availability: “Smart presence detection” prevents unwanted shutoffs

    Become a technology leader

    The NFC technology supports fast device configuration as well as innovative diagnostics options via smartphone app

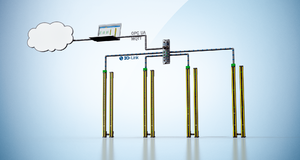

    Safety and automation united – IO-Link makes a comprehensive, cost-effective system design possible
    Thanks to the use of data with Industry 4.0 in view, deTec4 is a future-proof investment

    Increased productivity and short downtimes—the future of mobile maintenance

    Safety guaranteed on all levels

    With the deTec4 light curtain, your safety solution is ready to use quickly. Thanks to the uniform housing design, standardized connectivity, and compatible accessories for the entire deTec product family, implementation into the machine design is always the same. Featuring sophisticated modularity, the deTec enables necessary functions to be activated using the matching system plug. An improved alignment display directly on the safety light curtain saves time, making additional software unnecessary.

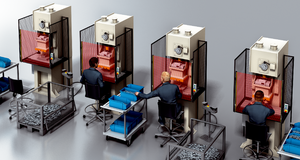

    Day after day, the deTec safety light curtain ensures safety of personnel in a cost-effective manner for many industries. The intelligent device concept illustrates the innovative approach to productivity and future viability: rapid commissioning, resulting in significantly faster system effectiveness, which in turn improves system efficiency.

    Increase productivity with greater machine safety

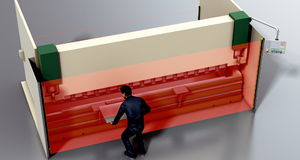

    Reduced resolution Safety and availability using intelligent evaluation algorithms. Small objects such as thin sheets, chips or little creatures such as insects will not lead to a machine shutoff—whereas hands will certainly be detected.

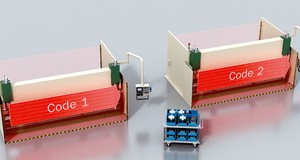

    Beam coding Maximum availability and prevention of unwanted shutoffs using beam coding on adjacent machines.
    Reduced transmitting power When the distance between machines is short, the transmitting power of the deTec4 can be reduced, preventing it from influencing the receivers of an adjacent system.

    Intelligent protection for more productivity

    See how the intelligent device concept behind the deTec4 illustrates the innovative approach to productivity
    Quick and easy alignment and excellent ease of use directly on the device with an integrated alignment quality display and status LEDs

    Standardized connectivity and product-specific accessories – for the entire deTec product family, implementation into the machine design is always the same.

    Time is money – simple mounting, alignment, and commissioning in a matter of minutes. The DIP Switch Assistant in the smartphone app or in the IO-Link configuration software shows the right settings for the system plug.

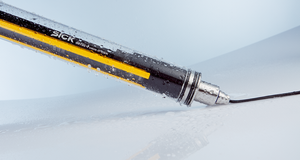

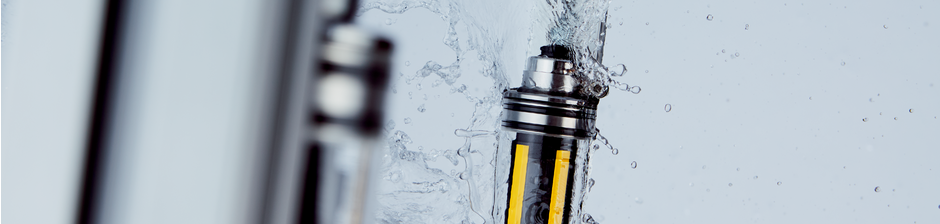

    SAFEST UNDER HIGH PRESSURE WHEN USING IP69K

    Safety and quality are paramount in the production and processing of food: Supply contaminated or inedible goods, and you will be faced with considerable financial losses and damage to your reputation. That is why hygienic packaging and cleaning processes as well as a safe machine design are so important in the food industry.

    deTec IP69K and deTem IP69K: The introduction of the deTec safety light curtains and the deTem multiple light beam safety devices has made protecting hazardous points and access points easier than ever. All of our application knowledge has been packed into the optimized protective housing with enclosure rating IP69K, resulting in a high degree of productivity.

    For our newest generation of safety light curtains and multiple light beam safety devices with enclosure rating IP69K, we did not only rethink the design. We also kept in mind the wish for more flexibility in the application. You can see this in a variety of different applications.

    VERSATILE APPLICATION - SAFETY AT ALL TIMES

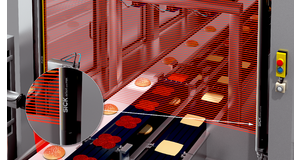

    Access protection on a pick robot deTec Core IP69K safety light curtains are ideally suited for protecting the hazardous point of a pick robot (infeed and outfeed). Resistant material, smooth surfaces, and a resistance to high-pressure cleaning help to prevent the accumulation of bacteria – a requirement for use in hygienic environments.

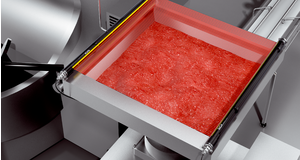

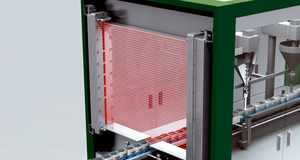

    Protecting a cutter or filler When processing meat or sausage products, both hygiene and safety have a high priority. The deTec4 Core IP69K safety light curtain reliably protects the hopper opening of a cutter or filler. Daily high-pressure cleaning is no problem.

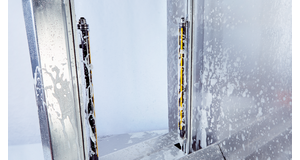

    Access protection in cheese production Harsh environmental conditions prevail in cheese factory washing systems due to the frequent use of hot water, cleaning agents and steam cleaners. The impermeability and ruggedness of a safety light curtain play a decisive role here.

    A safe and rewarding investment

    IP69K-certified entire system for safe production
    Reduction of cleaning times for increasing productivity
    Quick replacement of the protective housing ensures a high level of flexibility

    Increased productivity thanks to long service life and high durability

    SAFETY IN EXPLOSIVE ENVIRONMENTS

    Explosive environments are governed by particularly stringent safety regulations and standards. As a global leader in the supply of opto-electronic protective devices, SICK develops innovative solutions, such as the explosion-proof enclosure for safety light curtains, to ensure these standards are adhered to. deTec Core safety light curtains can be used to implement different Ex zones depending on the application.

    Safety light curtains make a crucial contribution to the effective protection of people and working environments. When combined with SICK’s deTec variants, the field of application of these devices can be expanded to include industries that require explosion protection measures and compliance with applicable standards.

    Safety, even in extreme conditions

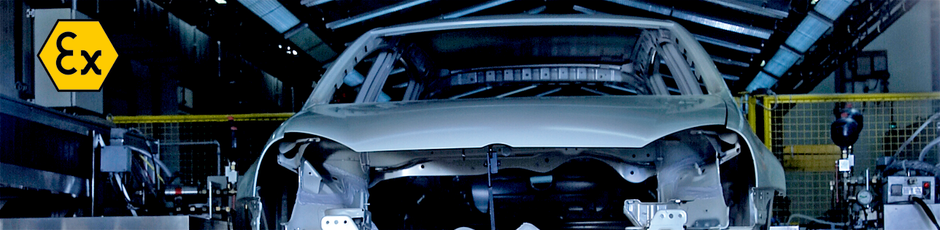

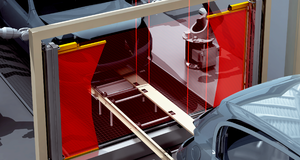

    Automotive Highly explosive vapors arise during the painting of automobile bodies
    Food and beverages Flour dust in the vicinity of a filling station with a screw feeder carries a constant risk of explosion.

    Certification with the highest protection classes

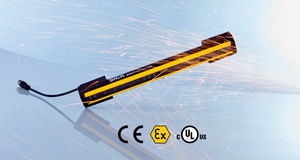

    deTec Core Ex II 3GD

    The safety light curtains in the deTec product family are designed and approved for use in hazardous areas according to:

    • ATEX for gas: II 3G Ex nA op is IIB T4 Gc X
    • ATEX for dust: II 3D Ex tc IIIB T135°C Dc

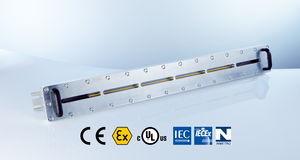

    deTec Core Ex

    The explosion-proof housing for safety light curtains is designed and approved for use in hazardous areas according to:

    • ATEX for gas: II 2 G Ex d IIB T6 Gb
    • ATEX for dust: II 2 D Ex tb IIIC T56°C Db
    • NFPA 70/NEC 500 Class I, Div. 1, Groups C and D
    • NFPA 70/NEC 500 Class II, Div. 1, Groups E, F and G
    • NFPA 70/NEC 500 Class III, Div. 1
    See how rugged the deTec4 Core Ex is in use.

    Complies with all applicable safety regulations and standards thanks to the high durability of the material

    Applications

    Technical overview


    • Technical data overview

      Technical data overview

      Protective field height300 mm ... 2,100 mm
      Resolution14 mm / 30 mm
      Type

      Type 2 (IEC 61496-1)

      Type 4 (IEC 61496-1)

      Safety integrity level

      SIL1 (IEC 61508)

      SILCL1 (IEC 62061)

      SIL3 (IEC 61508)

      SILCL3 (IEC 62061)

      Enclosure rating

      IP65 (IEC 60529)

      IP67 (IEC 60529)

      IP66 (IEC 60529)

      IP69K (ISO 20653)

      Ambient operating temperature–30 °C ... +55 °C
    All technical data can be found accompanying the individual product
