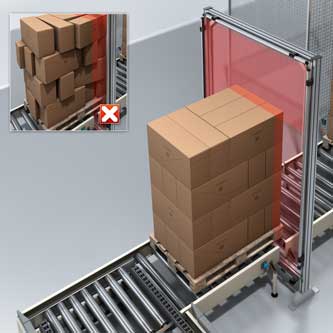

Pallet Overhang

Minimise downtime and damage due to pallet overhang with simple, easily implemented light grids.

Gather additional data on the height of the pallet load from the same device with no additional outlay
Streamline logistics based on additional pallet load telemetry
Offline storage of parameters means any failures can quickly be overcome – thus minimizing unplanned downtime and additional costs
Large range of sizes and beam separations means we have the right choice available for you

Flexible in use for length, width and height measurement.

High measurement accuracy for detecting even very small objects reliably
Transparent mode function for reliably detecting and measuring transparent objects
The high-speed scan offers short response times for safely detecting objects traveling at high speeds
The SOPAS ET configuration software with menu-driven wizard for quick configuration
Ambient light immunity enables greater reliability
Integrated interfaces and matching function blocks reduce the time and effort involved in the commissioning process
Simple maintenance without the need for specialist staff thanks to the cloning function with IO-Link

The flexible and efficient detection system in one chain

Flexibly expandable light grid system: Up to 60 sensors can be cascaded and controlled centrally via the FlexChain host
Ready for operation immediately: The sensors are identified and taught in at the push of a button
Optimum measurement certainty thanks to sequential sensor cycling without mutual interference
Highly flexible positioning of through-beam photoelectric sensors, photoelectric retro-reflective sensors, photoelectric proximity sensors and light grids at any distance or in any position
High process stability thanks to extensive diagnostic function
High flexibility due to logic configuration in the host and the IO-Link, CANopen and RS-485 interface variants
