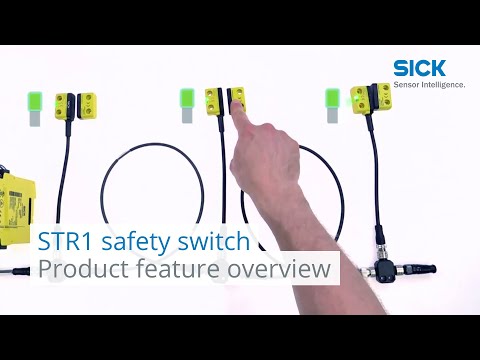

The STR1 transponder safety switch has monitored semiconductor outputs (OSSDs) and can be safely connected either individually or in series.
It can be used for applications where a high level of manipulation protection is required. The STR1 is available with three codes. Universally coded sensors accept all actuators. An actuator must be taught into both the uniquely coded and permanently coded variants; this is the only actuator that the STR1 then accepts.
The sensor has three active sensor surfaces. The actuator comes in four different sizes. This allows the STR1 to offer maximum mounting flexibility.
At a glance
Response range of up to 14 mm
Small housing with flexible mounting options
Sensor activation possible from three sides
Four different actuators available
Universally coded, uniquely coded, and permanently coded sensors
PL e (EN ISO 13849), SIL3 (IEC 61508)
Safe series connection of up to 30 sensors possible
The STR1 non-contact safety switch switches with extreme reliability
To keep system productivity as high as possible, safety switches should do one thing above all else: Switch reliably. No matter what is happening around them. That is why safety switches must be rugged so they can work reliably even in very challenging environments. It is also important that the sensor status can always be clearly identified.
The STR1 safety switch supports the productivity of your machines with its reliability.
The compact STR1 transponder safety switch can be mounted and used flexibly.
With its high flexibility, the STR1 non-contact safety switch not only offers many mounting options, but also features maximum manipulation protection thanks to its RFID technology. Simply select a combination of the best actuator and the coding required for your application.

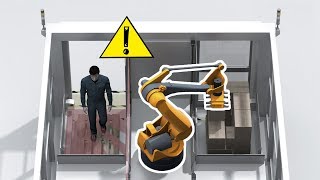

The STR1 transponder safety switch offers a wide range of application options. You can use it as required by the risk assessment and machine design.
