Photoelectric sensors

The new home of sensing range

Your Benefits

  • Reliable object detection at high sensing ranges and large detection angles, e.g., even with shiny or jet-black surfaces
  • Highly visible light spot simplifies alignment of the red-light versions
  • Precise, simple adjustment with potentiometer, teach-in button, or display
  • Laser class 1 and therefore eye-safe
  • High levels of availability and durability. Rugged even when subjected to high mechanical loads thanks to VISTAL™ housing.
  • The world's smallest sensor housing ensures great flexibility when designing machines
  • IO-Link extends functionality


The new home of sensing range

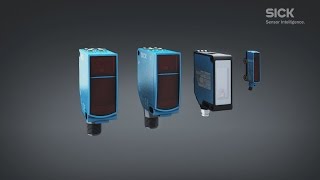

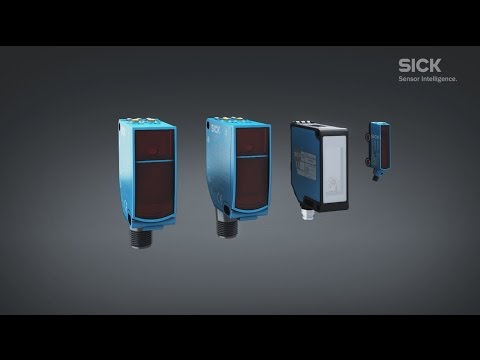

The powerful PowerProx MultiTask photoelectric sensors offer all of the advantages of time-of-flight technology in the world's smallest sensor housing to date, giving maximum flexibility when designing machines. Objects being conveyed at high speed, small and flat objects, and jet-black or shiny objects can now be reliably detected at sensing ranges between 5 cm and 4 m. PowerProx also provides stable detection results over a large detection angle. The “Distance”, “Speed”, “Precision”, „Small“, „Mini“, „Micro“, and “WTT280L” versions are designed to be used in different applications. This means that PowerProx always offers perfect solution – for empty bay detection via rapid counting right through to use in handling and assembly.

At a glance
  • Time-of-flight technology
  • Laser class 1, red and infrared light

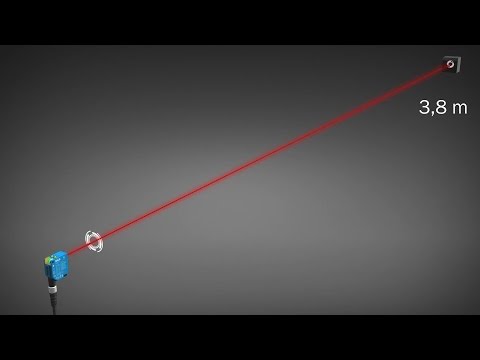

  • Sensing range for object detection: 5 cm to 4 m
  • Switching frequencies of up to 1,000 Hz
  • Minimum distance between object and background: 6 mm
  • VISTAL™ housing
  • Up to 3 independently adjustable switching outputs or one analog output
  • IO-Link available as an option (distance value, 8 switching points, smart sensor functions)

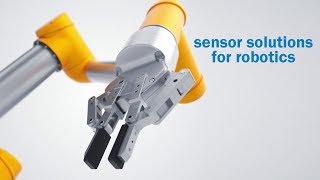

Sensor solutions for robotics
Robotics image
Sensor solutions for robotics
Robotics image

Working together as equals

Thanks to sensors from SICK, robots perceive more precisely. For all challenges in the field of robotics: Robot Vision, Safe Robotics, End-of-Arm Tooling, and Position Feedback.
Find out more


Technical overview

  • Technical data overview

    Technical data overview

    Dimensions (W x H x D)

    20 mm x 49.6 mm x 44.2 mm

    17.6 mm x 46.5 mm x 34.1 mm

    17.4 mm x 45.6 mm x 34.7 mm

    12.2 mm x 41.8 mm x 17.3 mm

    7.7 mm x 27.5 mm x 13.5 mm

    23.5 mm x 76 mm x 55.8 mm

    Sensing range max.

    50 mm ... 3,800 mm 1)

    50 mm ... 2,200 mm 2)

    200 mm ... 4,000 mm 3)

    200 mm ... 3,000 mm 4)

    200 mm ... 18,000 mm 5)

    Light sourceLaser
    Type of lightVisible red light / Infrared light
    Enclosure ratingIP67
    Housing material

    Plastic VISTAL®

    Plastic ABS

    Plastic MABS



    Potentiometer, 4 turns 1 x

    Potentiometer, 4 turns 2 x

    Single teach-in button 1 x

    Single teach-in button 2 x

    Single teach-in button (2 x)

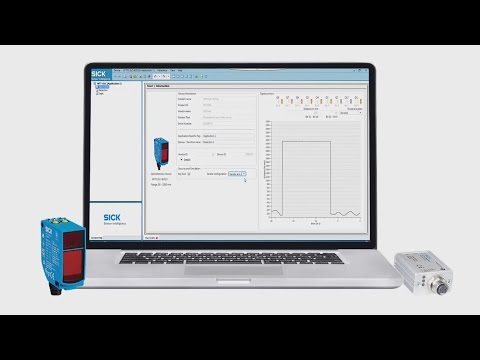

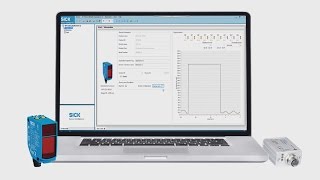

    SOPAS Engineering Tool

    Single teach-in button (4 x)


    Local user interface with display and button (2 x)

    Single teach-in button

    Single teach-in button 6)

    Potentiometer 1 x

    Potentiometer 2 x

    • 1) Object with 6 ... 90 % remission (based on standard white to DIN 5033).
    • 2) Object with 15 ... 90 % remission (based on standard white to DIN 5033).
    • 3) Object with 90 % reflectance (referred to standard white, DIN 5033).
    • 4) Objects to be sensed with 6 % reflectivity (based on black).
    • 5) Reflector P250.
    • 6) Teach-Offset 15 mm.
All technical data can be found accompanying the individual product
