Safety encoders
DFS60S Pro
Safe, easy, flexible: Encoders for functional safety
Your Benefits
- Certified safety products ensuring the best possible protection for persons, machinery, and systems
- Easy and practical handling of safety functions with all-in-one solutions from a single source, safety functions with the Flexi Soft motion control modules FX3-MOC0 by SICK: safe stop 1 (SS1), safe stop 2 (SS2), safe operating stop (SOS), safe speed monitoring (SSM), safely limited speed (SLS), safe direction (SDI), safe brake control (SBC)
- Force fit and tight fit for mechanical reliability
- Certified safety products instead of standard products reduce the scope of safety engineering
- Versatile connection options for high levels of flexibility and straightforward implementation
- Compact installation depth for compatibility with applications in which installation space is limited
Overview
Safe, easy, flexible: Encoders for functional safety

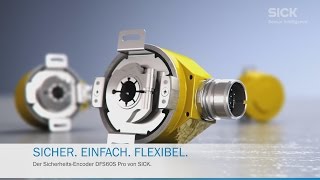

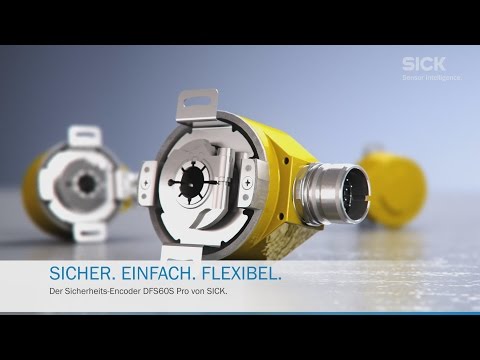

Safe electrical and mechanical design, easy system implementation and flexible application possibilities. The DFS60S Pro is an incremental encoder for functional safety. It supports safety functions conforming to IEC 61800-5-2. The high enclosure rating, wide temperature range and generous ball bearing clearance are the key to enhanced durability. They make the DFS60S Pro the universal motion control sensor for stationary and mobile safety applications.
- Encoders for functional safety technology: SIL2 (IEC 61508), SILCL2 (EN 62061), PL d (EN ISO 13849)
- Electrical interface: 4.5 V ... 32 V; sine/cosine 1 VPP; 1,024 periods
- Clamping flange or servo flange, blind hollow shaft or through hollow shaft (assembly options with feather key)
- Universal cable outlet, M23 or M12 male connector, axial or radial
- Enclosure rating: IP 65
- Working temperature range: –30°C ... +95°C (depending on type)
