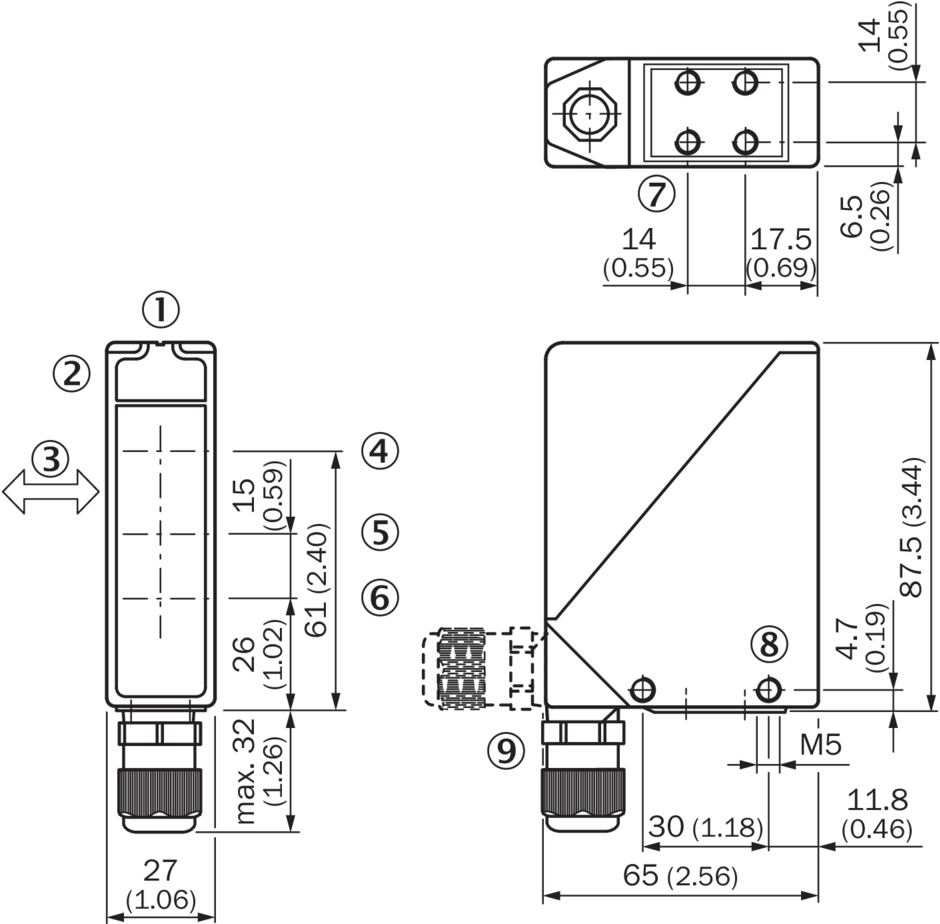

Dimensions in mm (inch)

① Alignment sight

② LED signal strength indicator

③ Standard direction of the material being detected

④ Center of optical axis, sender

⑤ Center of optical axis, receiver (close range)

⑥ Center of optical axis, receiver (far range)

⑦ M5 threaded mounting hole, 6 mm deep

⑧ M5 threaded mounting hole, through-hole

⑨ M16 screw fixing and plug rotatable by 90°
